PacketBand+ TDM-1VX

PB-PLUS-TDM-1VX

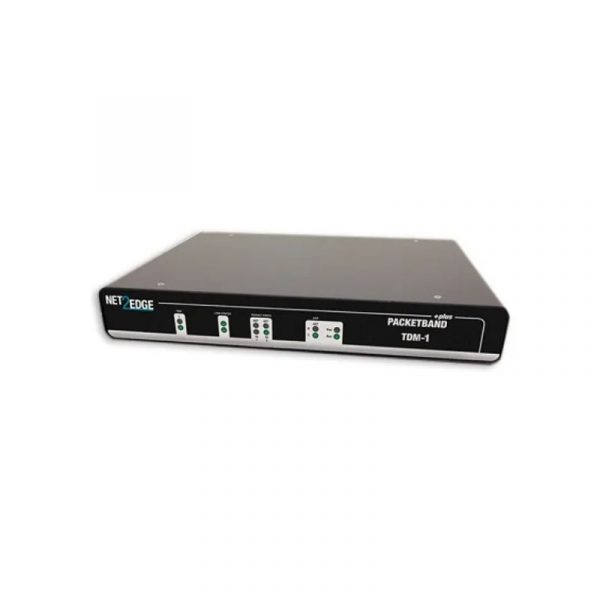

Net2Edge PacketBand+ TDM-1VX

Transports clock-locked clear channel or structured E1/T1 circuits & TDM serial data over Ethernet / IP networks. Capable of exceeding G.823/4 Synchronous Interface requirements. Supports full 802.1q tagging & associated 802.1p CoS prioritization levels. Various clocking options for different network types & clock recovery requirements

Request Quote
In August 2021, Net2Edge was acquired by Lantronix Inc. The products of Net2Edge will continue to be available from CoverTel as usual. Logo change of products from Net2Edge to Lantronix will be done progressively.
Category:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

The PacketBand+ TDM 1VX supplies a single clock locked, clear-channel or structured E1/T1 and an X.21, V.35, RS232 or RS530 serial circuit over Ethernet or IP networks. It can be deployed in pairs or with other members of the TDM over IP product range.

Key Features and Benefits:

  • Single E1/T1 port
  • Single RS530 DB25 female port (selectable via cable to V.35, X.21, RS530 or RS232)
  • Multi-standard TDM pseudowire support: CESoPSN, SATOP, TDM over IP
  • Two 10/100/1000Mbps RJ45 interfaces & Single 100/1000Mbps SFP interfaces
