Passive Optical Network Power Meter for XGSPON/XGPON/BPON/EPON/GPON

XGS-157

The XGS-1577 XGSPON Power Meter measures upstream and downstream PON wavelengths simultaneously across EPON, BPON, GPON, XG-PON, and XGS-PON networks. Featuring a bright color LCD, data storage for 1,000 results, and up to 90 hours of battery life, it’s built for reliable field testing.

Download Datasheet
Request Quote
We are an Authorised Distributor of Jonard Tools, offering their extensive range of high-quality products. While we strive to keep a selection of Jonard Tools in stock for immediate shipment, please note that some items may need to be sourced upon your purchase. Rest assured that we are committed to providing you with genuine Jonard Tools, backed by their 'Made For Life®, Guaranteed For Life' warranty. If you can't find the specific tool you need on our website, please browse through the catalogue or reach out to us and we'll be happy to assist you in sourcing it.
SKU: XGS-157 Category:
This field is for validation purposes and should be left unchanged.

Interested in this product?

1800 268 378

Description

The XGS-1577 XGSPON Meter is a high-performance testing tool designed for accurate, simultaneous measurements of upstream and downstream wavelengths in modern optical networks. Supporting 1270 nm and 1310 nm upstream and 1490 nm, 1550 nm, and 1577 nm downstream wavelengths, it provides complete coverage for EPON, BPON, GPON, XG-PON, and XGS-PON networks—making it ideal for installation, activation, and maintenance tasks.

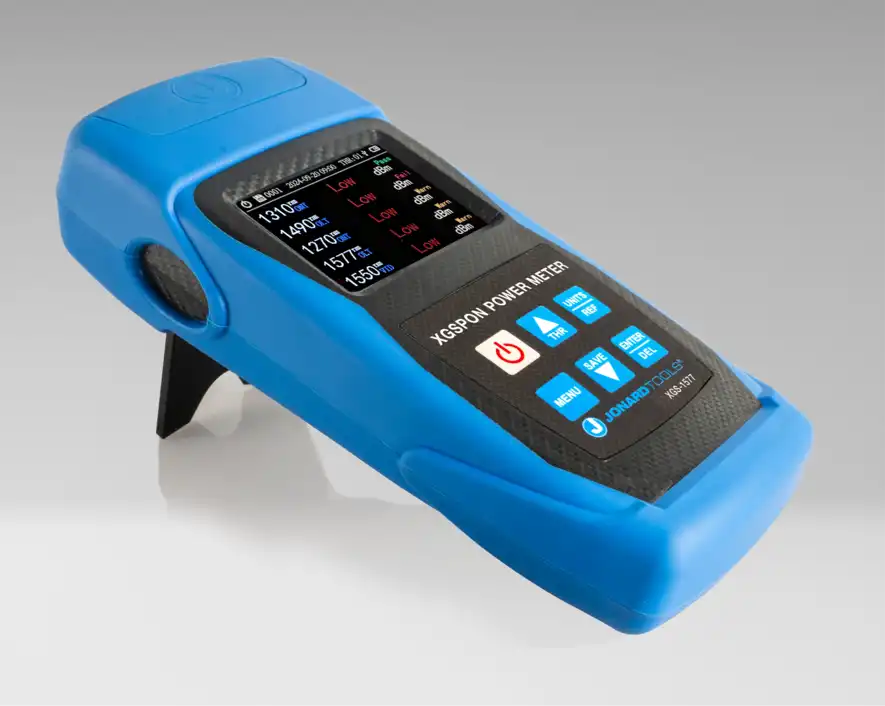

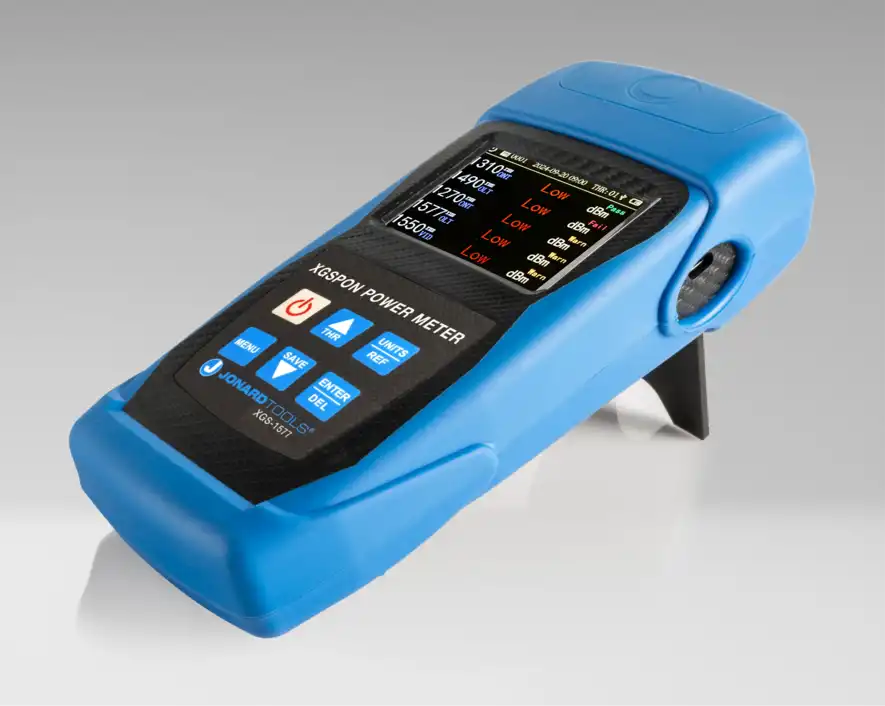

Built with a bright, color LCD screen and user-friendly interface, the XGS-1577 ensures clear data visibility and intuitive operation, even in challenging field conditions. It includes SC/APC and FC/APC adapters for compatibility with the most common connector types used in PON environments.

Technicians benefit from enhanced productivity with its data storage capacity of up to 1,000 test results, which can be easily exported and analyzed on a PC. A built-in kickstand provides an ergonomic viewing angle, and the unit is powered by three AA batteries, delivering up to 90 hours of continuous operation—perfect for demanding fieldwork.

Key Features & Benefits:

  • Comprehensive Wavelength Support: Measures 1270/1310 nm upstream and 1490/1550/1577 nm downstream simultaneously.
  • Multi-PON Compatibility: Supports EPON, BPON, GPON, XG-PON, and XGS-PON systems.
  • User-Friendly Display: Color LCD with adjustable brightness for optimal visibility in all lighting conditions.
  • Flexible Connectivity: Includes SC/APC and FC/APC adapters for broad compatibility across network types.
  • Ample Data Storage: Stores up to 1,000 test results with PC download capability for detailed analysis.
  • Field-Ready Design: Built-in kickstand and compact, durable housing suited for field environments.
  • Long Battery Life: Operates for up to 90 hours on standard AA batteries for extended use.

Applications:

  • PON network installation and activation
  • Fiber maintenance and troubleshooting
  • Multi-wavelength power level verification
  • GPON/XGSPON field testing and commissioning

The XGS-1577 XGSPON Meter combines precision, simplicity, and endurance—providing technicians with a dependable and easy-to-use tool for ensuring high-quality optical network performance.
