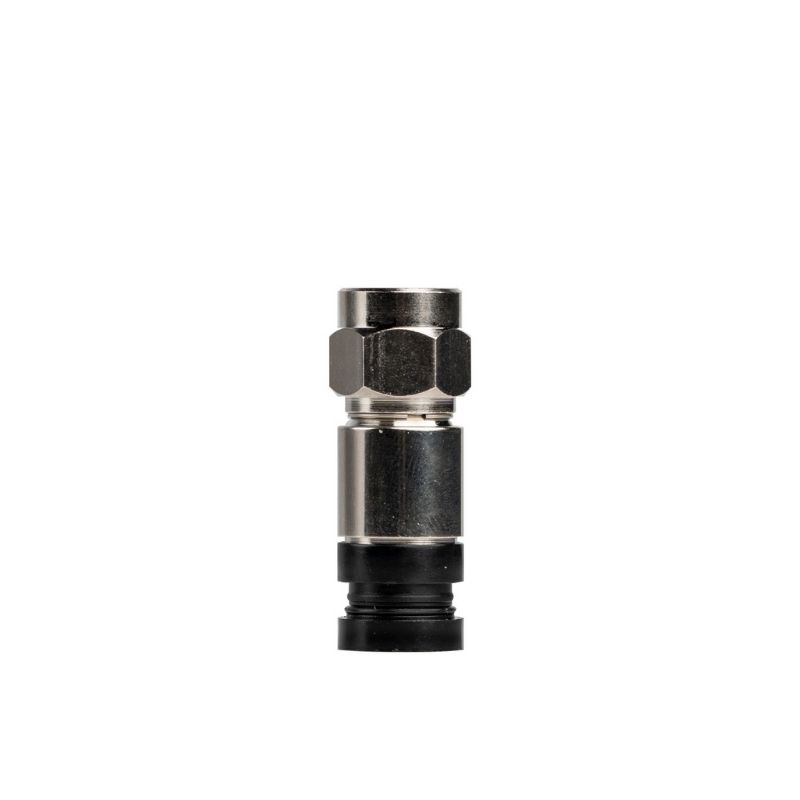

RG6 Connectors (Pack of 50)

RG6-50

$76.50 inc GST

RG6 connectors are used to connect a coaxial cable to a device, such as a TV or cable modem. These connectors are universal compression connectors, which means they can be used for professional or consumer applications. The one-piece design of these connectors makes them easy to use, and they provide a secure 360° compression seal, which ensures maximum RF shielding performance.

These connectors have an all-metal design, which allows for unparalleled electrical and mechanical performance. The detachable, coupled advanced polymer compression system is pre-positioned to ensure a consistent fit with the cable. In simpler terms, this means that these connectors provide a strong, reliable connection that won’t easily come loose or degrade over time.

If you need to connect a coaxial cable to a device, these RG6 connectors are a great choice. They’re easy to use, provide a secure connection, and are designed to deliver optimal performance.

Download RG6-50 RG6 Connectors Product DataSheet
Request More Information
We are an Authorised Distributor of Jonard Tools, offering their extensive range of high-quality products. While we strive to keep a selection of Jonard Tools in stock for immediate shipment, please note that some items may need to be sourced upon your purchase. Rest assured that we are committed to providing you with genuine Jonard Tools, backed by their 'Made For Life®, Guaranteed For Life' warranty. If you can't find the specific tool you need on our website, please browse through the catalogue or reach out to us and we'll be happy to assist you in sourcing it.
SKU: RG6-50 Category:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

These RG6 connectors are universal compression connectors, ideally suited for professional and consumer use. The one-piece design of these connectors makes them simple to use and provides a secure 360° compression seal, resulting in maximum RF shielding performance. The all-metal design of the connector body and nut allows for unparalleled electrical and mechanical performance. The detachably coupled advanced polymer compression system is pre-positioned to ensure a consistent fit with the cable. These connectors also feature the following:

  • The universal one-piece, all-metal design works with Standard, Trishield, and Quadshield RG6 cables
  • Detachably coupled, advanced polymer compression system compresses the connector perfectly each time
  • Triple internal weather sealing prevents moisture from entering cable without the use of an external weather grommet
  • Standard 5/16″ – 1/4″ cable preparation using industry-standard preparation tools
  • Superior RF performance at CATV and satellite TV frequencies
  • Quickshield® ground feature provides weather sealing to prevent signal ingress and egress
  • Works with CTF-200, CTF-230, and CT-200 COAX Compression Tools

Specifications:

  • Connector Size : RG6
  • Connector Type : Q II F-Type Compression Connector (Series 6 Universal Design)
  • Plating Material : Nickel
  • Return Loss : > 30 dB (5-1000 MHz)
  • Shielding Effectiveness : > 95 dB (0-300 MHz), > 70 dB (300 MHz – 1 GHz)
  • Screening Attenuation : > 80 dB (3 MHz – 3.0 GHz)
  • Dielectric Strength : > 1.0 kVAC for 1 minute
  • Insulation Resistance : > 5000 MΩ@ 100 VDC
  • Length : 1.25″ (31.75 mm) Uncompressed | 1.11″ (28.19 mm) Compressed
  • Weight (1 piece) : 0.020lb (9.0 g)
  • UPC # : 810053350331
