NanoTronix Cable Expert CE-1000

The Cable Expert CE-1000 by NanoTronix is an all-in-one network qualification unit that measures logical network performance and physical condition of network cables. It offers comprehensive features such as cable length measurement, fault detection, wire mapping, tone generation, continuity testing, and network analysis. With its user-friendly interface, rugged design, and versatile functionality, the Cable Expert is a reliable tool for efficient installation and maintenance of LANs, supporting various cable types and providing accurate fault localization.

SKU: CE-1000 Category: Cable Testers

Description

Description

Nanotronix Cable Expert CE-1000 is a versatile network qualification unit designed to measure the logical network performance and physical condition of network cables. Whether you’re installing or maintaining Local Area Networks (LAN) with 10BASE-T and 100BASE-TX Ethernet protocols, this all-in-one cable tester is the perfect tool for network engineers.

Key Features:

LAN Cable Physical Information: Provides detailed physical information about the LAN cable under test, including cable length, faulty positions (open or short), and wire map (open, short, split, crossed, and reversed).
High-Resolution TDR and TDX: Utilizes a novel high-resolution graphic Time-Domain Reflectometer (TDR) and Time-Domain Crosstalk (TDX) to locate faulty positions along the cable up to 1km. Can be used with various cable types, such as Coaxial cables for cable TV and HFC networks and Telephony cables.
Tone Generating Function: Helps identify cable connections and trace cables within walls, floors, and ceilings.
Continuity Testing Function: Checks the continuity of the cable to ensure proper functionality.

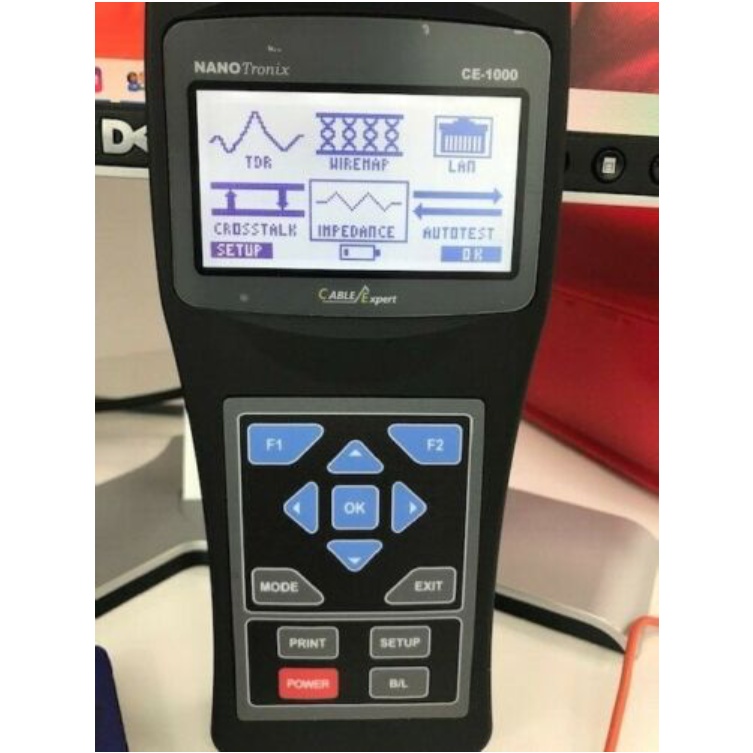

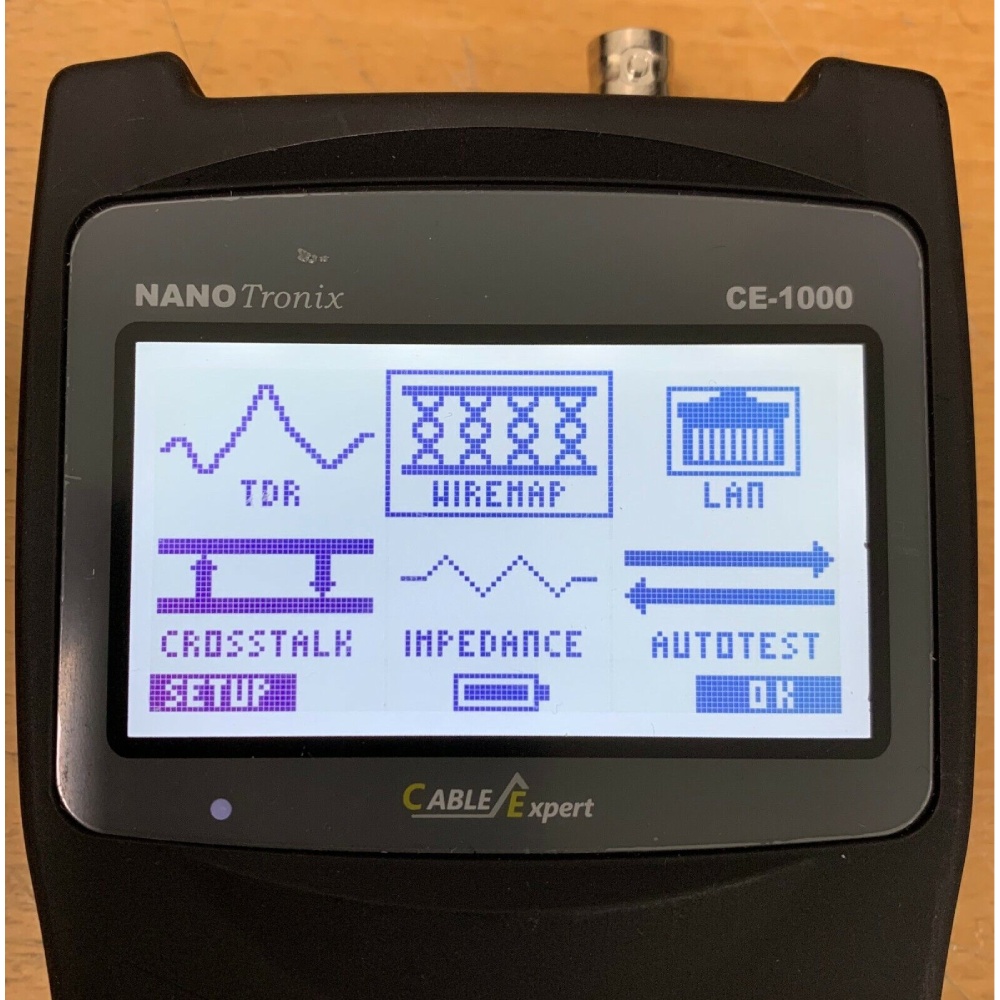

Graphic User Interface: Features a user-friendly 128×64 LCD and serial communication port, allowing field engineers to easily operate the device, transfer stored data to their PCs, and print reports using optional thermal printers.
Rugged and Portable: Housed in a durable ABS enclosure, the Cable Expert is built to withstand challenging environments. It is powered by a long-lasting Li-polymer rechargeable battery, providing up to 6 hours of battery life.
Network Performance Measurement: Measures round-trip time (RTT) to assess network speed under dynamic and static configuration protocols. Conducts IP scanning to display information on all terminals connected to a local network. Evaluates link partner capabilities, including supported network speed (10BASE-T or 100BASE-TX) and duplexity (half- or full-duplex).

Benefits:

Efficient Network Installation and Maintenance: With its comprehensive features, the Cable Expert enables network engineers to streamline the installation and maintenance processes of LANs, saving time and effort.
Accurate Fault Localization: The high-resolution TDR and TDX technology allow precise identification of faulty positions along the cable, up to 1km, ensuring efficient troubleshooting and faster repairs.
Versatility: This cable tester supports various cable types, making it suitable for multiple applications, including Coaxial cables for cable TV and HFC networks, Telephony cables, and LAN cables.
Easy Data Management: The graphic user interface (GUI) and external interfaces (USB, RS-232C) facilitate easy data transfer to PCs for further analysis and generate detailed reports using optional thermal printers.
Portable and Durable: The Cable Expert’s rugged ABS enclosure and long-lasting battery make it a reliable tool in the field, ensuring uninterrupted operation even in demanding environments.
Network Performance Evaluation: This cable tester provides valuable insights into network performance, including network speed, link partner capabilities, and IP scanning, allowing network engineers to optimize network efficiency.

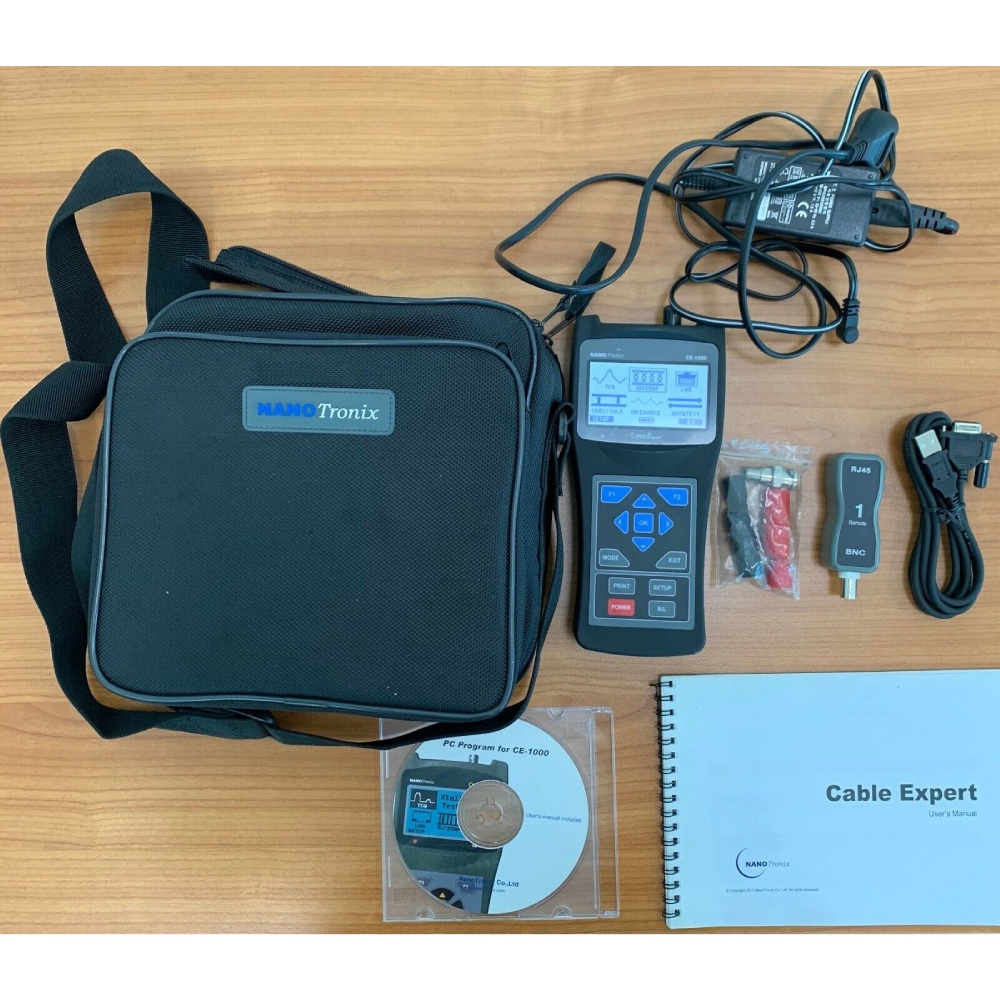

Product includes:
