Description

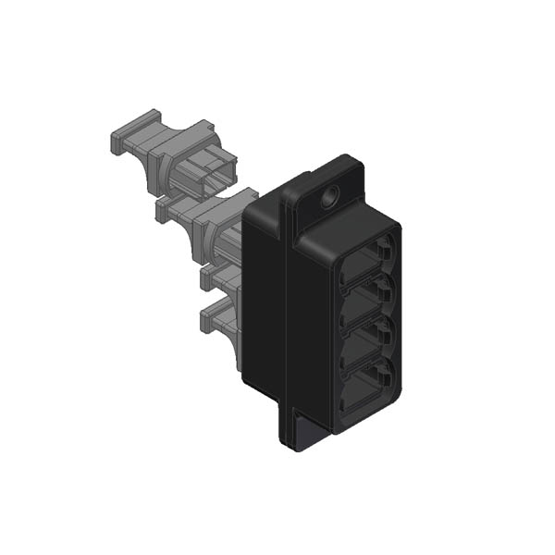

The MTP® Standard Footprint Adapter – Full Flange, 1×4, Opposed Key (9578) is a high-performance fibre optic adapter designed to support high-density MPO/MTP® connectivity in modern network infrastructure. Engineered to exceed TIA and IEC dimensional requirements, this adapter ensures optimal Total Withdrawal Attenuation Loss (TWAL) performance and reliable optical connections.
Designed with a 1×4 ganged configuration, this adapter enables efficient high-density fibre connectivity in applications such as data centre patch panels, central offices, and FTTx distribution hubs. The opposed key orientation supports correct connector alignment, while the full flange design provides secure mounting within patch panels and equipment.
The adapter features a latch beam and precision interface engineered to minimise debris generation during connector mating cycles, helping maintain cleaner connections and improved optical performance. Compatible with MTP®, MTP® PRO and MTP® PRO X connectors, this adapter provides flexibility for high-performance fibre network deployments.
Features and Benefits
- Exceeds TIA and IEC dimensional standards ensuring optimal TWAL performance
- 1×4 ganged adapter configuration supports high-density fibre connectivity
- Opposed key orientation ensures proper connector alignment
- Full flange design provides secure installation within patch panels and equipment
- Latch beam and interface engineered to minimise debris generation during connector mating
- Compatible with MTP®, MTP® PRO and MTP® PRO X connectors
- Supports standard, MTP Elite® and enhanced plug performance levels
- Ideal for high-density fibre infrastructure environments
Applications
- Card edge connectivity for on-board optic applications
- FTTx distribution hubs
- High-density patch panels in data centres, MSO and central office environments
- MTP® to single fibre breakout cassette systems
Specifications
- Part Number: 9578
- Brand: MTP®, MTP® PRO, MTP® PRO X
- Product Type: Fibre Optic Adapter
- Adapter Style: Ganged (1×4)
- Adapter Colour: Black
- Mounting: No Mounting Clip
- Key Orientation: Opposed Key
- Connector Style: MPO / MTP®
- Plug Performance: Standard, MTP Elite®, Enhanced
Standards Compliance
- IEC 61754-7-1
- IEC 61754-7-2
- TIA 604-5
