Fiber Power Meter & Optical Light Source Kit (-50 to +26 dBm, single-mode)

FPL-5050

$1,129.00 inc GST

The FPL-5050 Fiber Power Meter & Optical Light Source Kit provides everything you need to test fiber optic cables accurately. It includes the FPM-50A Power Meter and FLS-50 Light Source, both equipped with multiple adapters, stable wavelength outputs, and rugged carrying cases for field use.

Download Datasheet
Request More Information
We are an Authorised Distributor of Jonard Tools, offering their extensive range of high-quality products. While we strive to keep a selection of Jonard Tools in stock for immediate shipment, please note that some items may need to be sourced upon your purchase. Rest assured that we are committed to providing you with genuine Jonard Tools, backed by their 'Made For Life®, Guaranteed For Life' warranty. If you can't find the specific tool you need on our website, please browse through the catalogue or reach out to us and we'll be happy to assist you in sourcing it.
SKU: FPL-5050 Category:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

The FPL-5050 Fiber Power Meter & Optical Light Source Kit is a comprehensive testing solution designed for precise fiber optic measurements in single-mode applications. This all-in-one kit includes the FPM-50A Fiber Optic Power Meter and FLS-50 Optical Light Source, providing technicians with the essential tools to accurately measure both absolute optical power and relative power loss.

Key Features & Benefits:

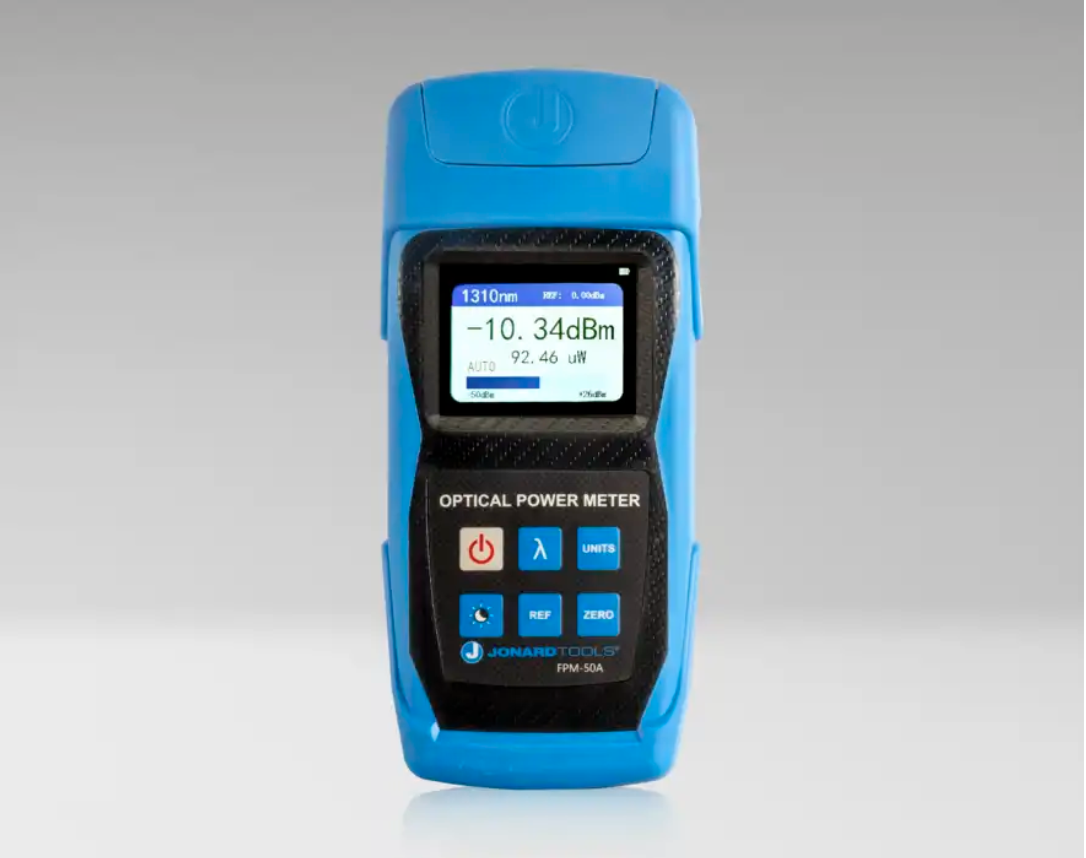

    • FPM-50A Power Meter
      • Measures optical power from -50 dBm to +26 dBm
      • Supports 6 calibrated wavelengths (850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm)
      • Comes with FC, SC (APC/PC/UPC), and LC (PC/UPC) adapters for broad connector compatibility
      • High-resolution display with 0.01 dB accuracy ensures precise readings
      • Includes auto-off function to conserve battery life
      • Nylon carry case and protective cover included
    • FLS-50 Optical Light Source
      • Emits stable light at 1310 nm and 1550 nm for single-mode fiber testing
      • Offers 4 modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz)
      • Equipped with FC, SC, and LC adapters for PC/UPC connections
      • Features automatic wavelength detection and a color LCD display
      • Built-in kickstand for hands-free operation
      • Storage pouch provided for convenience

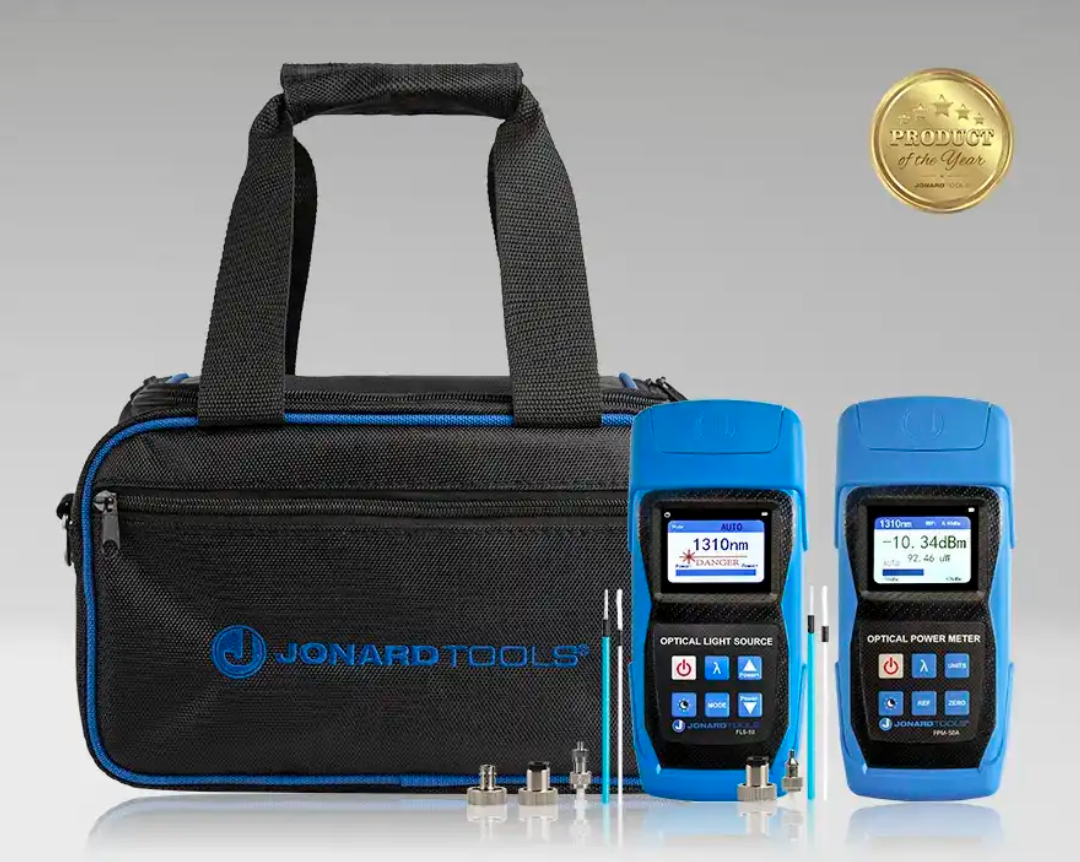

    • Full Kit Inclusions
      • (1) FPM-50A Power Meter
      • (1) FLS-50 Optical Light Source
      • (1) H-22 Rugged Carrying Case with Straps (FREE – over $36 value)
      • FC, SC, LC adapters for both tools
      • (3) AA Batteries each (for FPM-50A and FLS-50)
      • (2) Cleaning swabs for each device
      • Instruction manuals included

    Dimensions: 10 in x 8 in x 6 in (25.4 cm x 20.32 cm x 15.24 cm)
    Weight: 3.5 lb (1589 g)
